Text-based user interface
ILM appliance is using Text-based User Interface (TUI) to ease initialization and operations of the appliance.

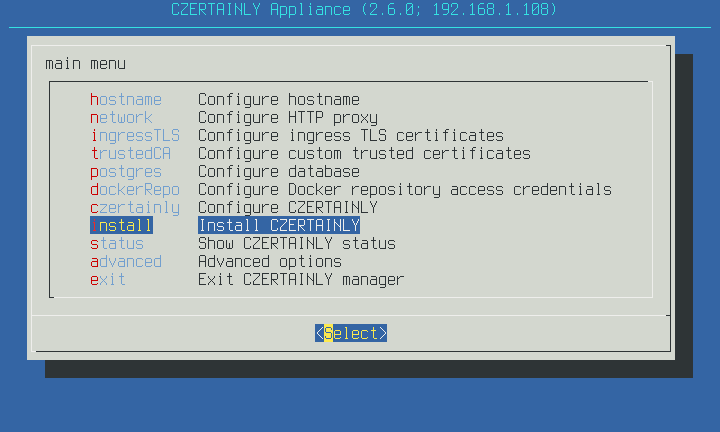

Menu overview
| Menu | Purpose | Reference |
|---|---|---|
| Main menu | Common appliance initialization and operation tasks. | Main menu |
| Advanced menu | Additional appliance administration tasks. | Advanced menu |
| Network menu | Hostname, network, proxy and time configuration. | Network menu |
Menu labels and available actions can vary by appliance version. The linked pages describe the operations and their effects.
Keyboard navigation
| Key | Action |
|---|---|
| ↑ / ↓ | Move between menu options. |
| Tab | Move between input fields and buttons. |
| ← / → | Move between adjacent buttons. |
| Highlighted letter | Jump to an option. Press again when multiple options share a letter. |
| Enter | Select the highlighted option. |
